Engineered to
be built.

PROJECT SCOPE & DELIVERABLES

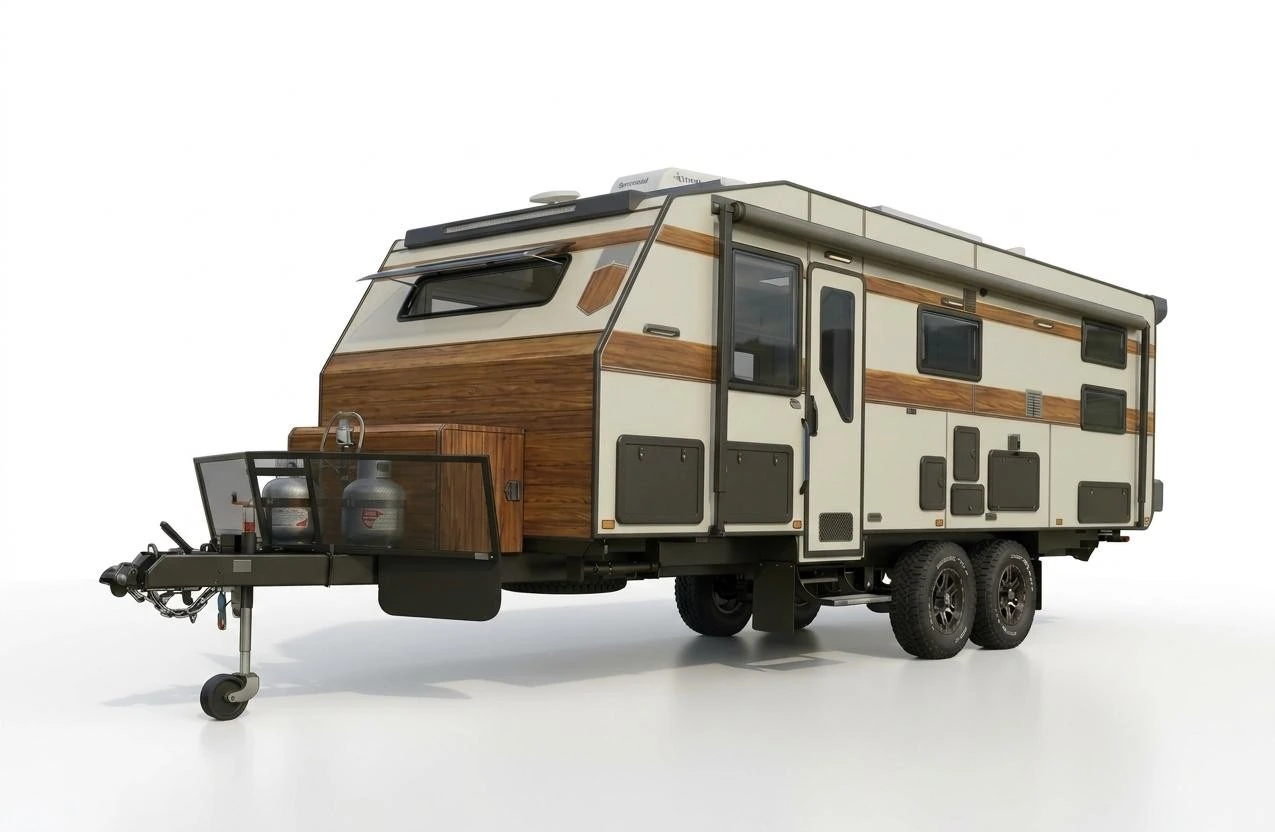

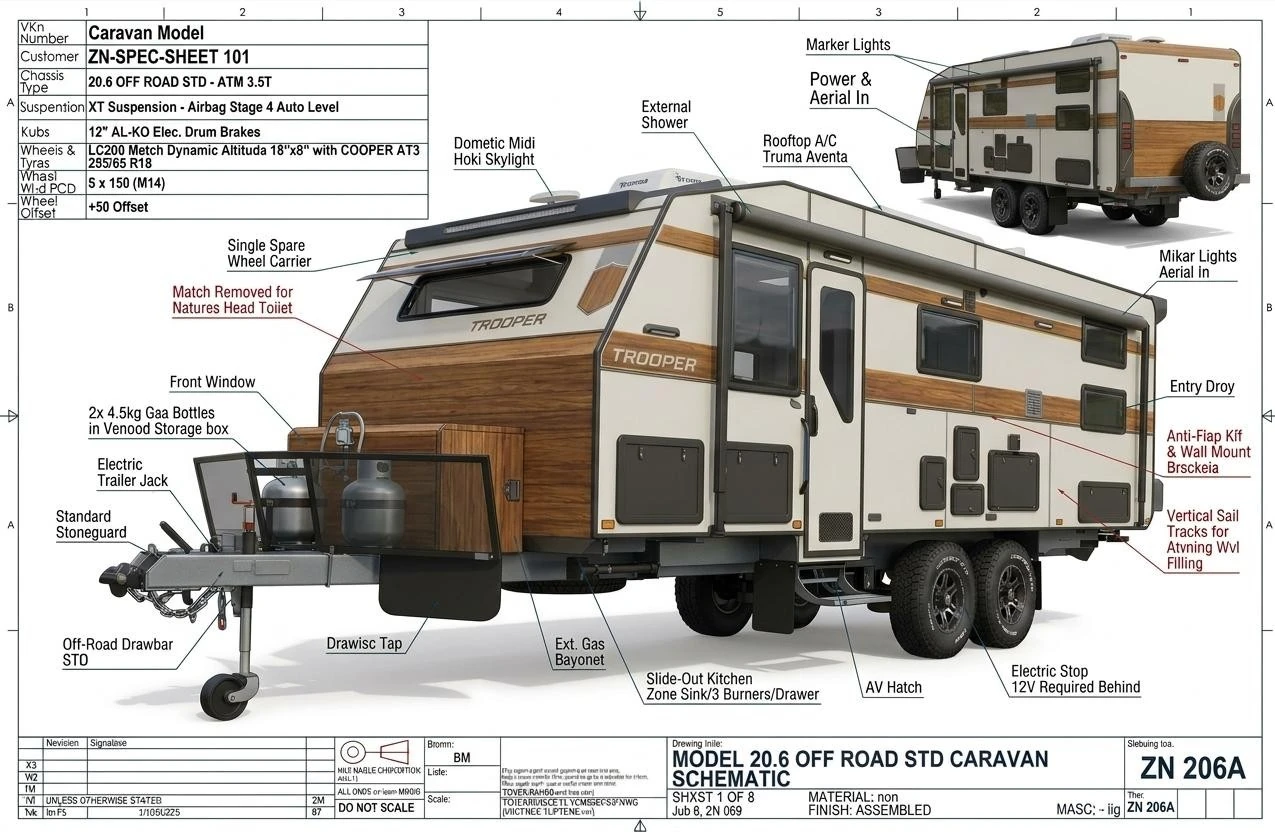

• End-to-end CAD package for the Model 20.6 Off Road STD caravan (Drawing ZN 206A, ATM 3.5T).
• Chassis design and analysis, built around airbag suspension with auto-level, 12" electric drum brakes and 18" off-road wheels.
• Laser-cut routing for plywood, PVC foam and tubes, including holes for electrical connections.
• Furniture layout included, covering the slide-out kitchen and interior storage.
• Production documents: detailed BOM, BOQ, manufacturing drawings and assembly drawings, with support from design to build.

PROJECT SCOPE & DELIVERABLES

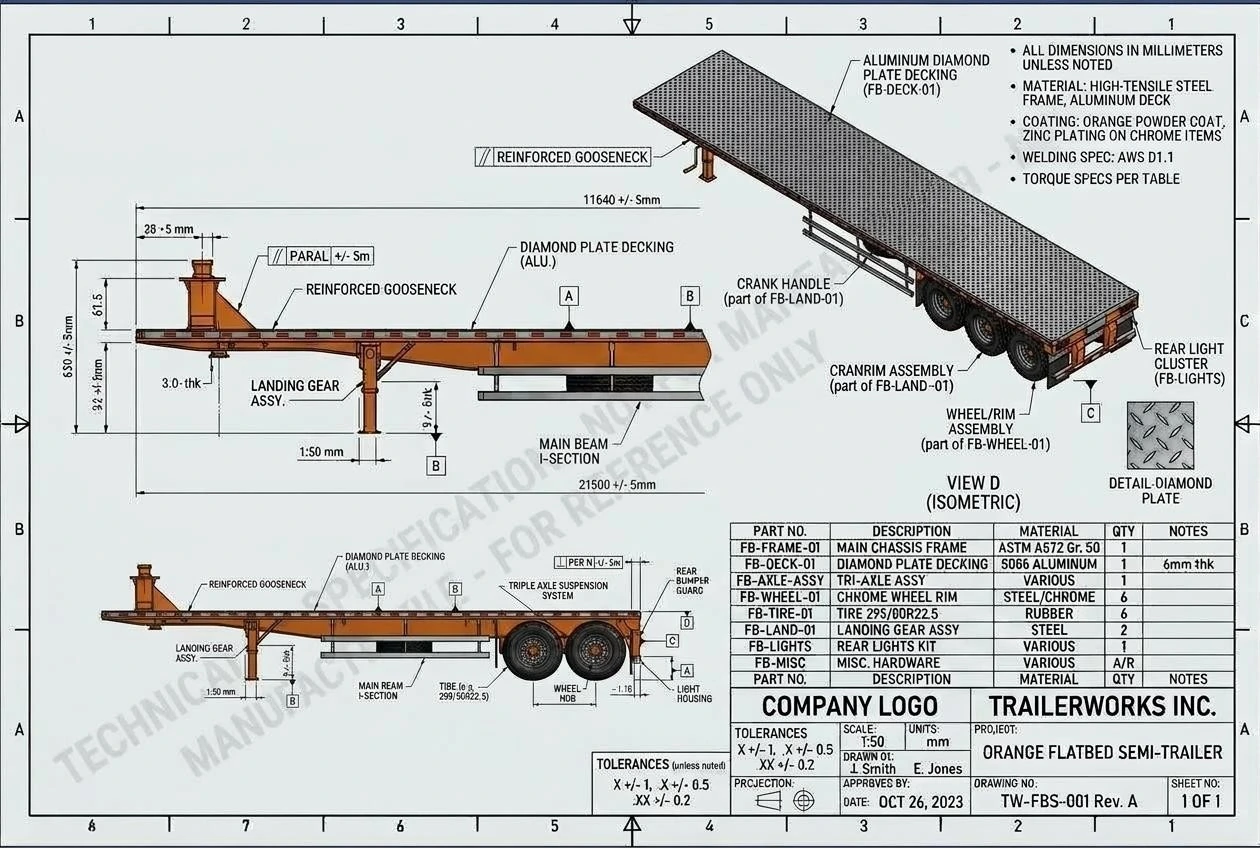

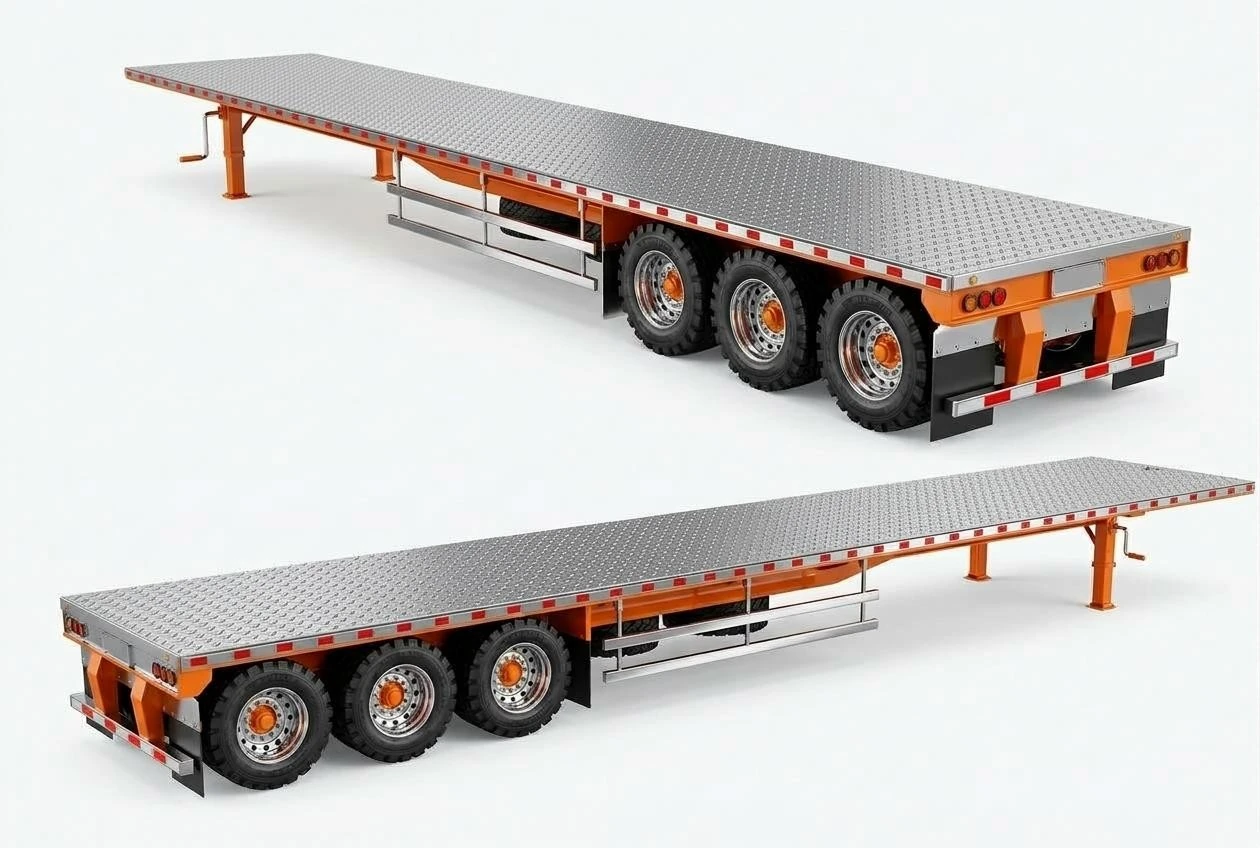

• Tri-axle flatbed semi-trailer with reinforced gooseneck, landing gear and aluminium diamond-plate deck.
• High-tensile steel frame (ASTM A572 Gr. 50) with orange powder coat, designed for welding to AWS D1.1.
• Dimensioned and toleranced production drawings with isometric and detail views.
• Part-numbered BOM covering frame, deck, axles, wheels, landing gear and lights, ready for the shop floor.

PROJECT SCOPE & DELIVERABLES

• Made for Armstrong Construction’s workshop in Canada, designed around the building dimensions supplied by the client.
• Easy to fabricate and install: the simplest workable design, keeping the BOQ to a minimum.
• OSHA-compliant: designed to OSHA stairway and handrail requirements (29 CFR 1910.25 and 1910.29).
• Safe installation: lifting and installation guidelines provided, compliant with CSA safety requirements.

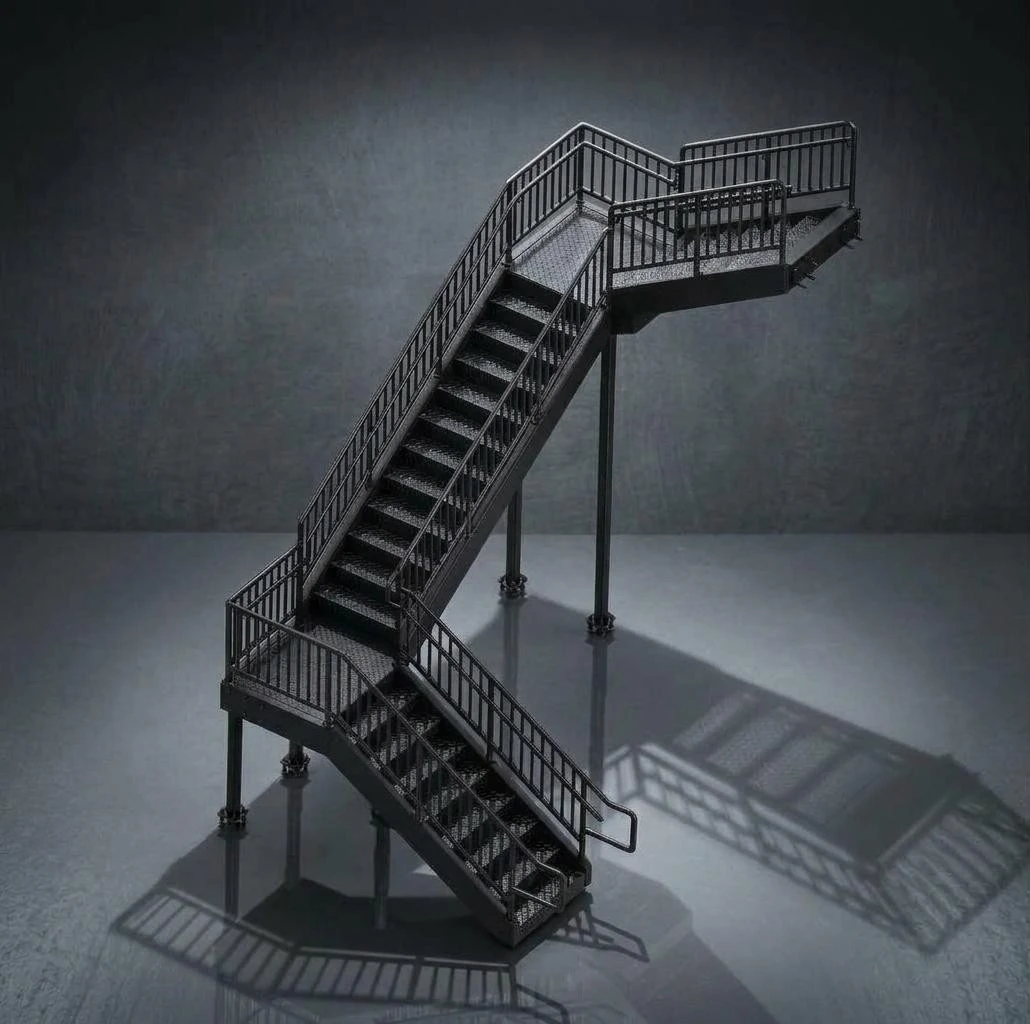

• Galvanized steel stair with landings, handrails and supporting posts.

PROJECT SCOPE & DELIVERABLES

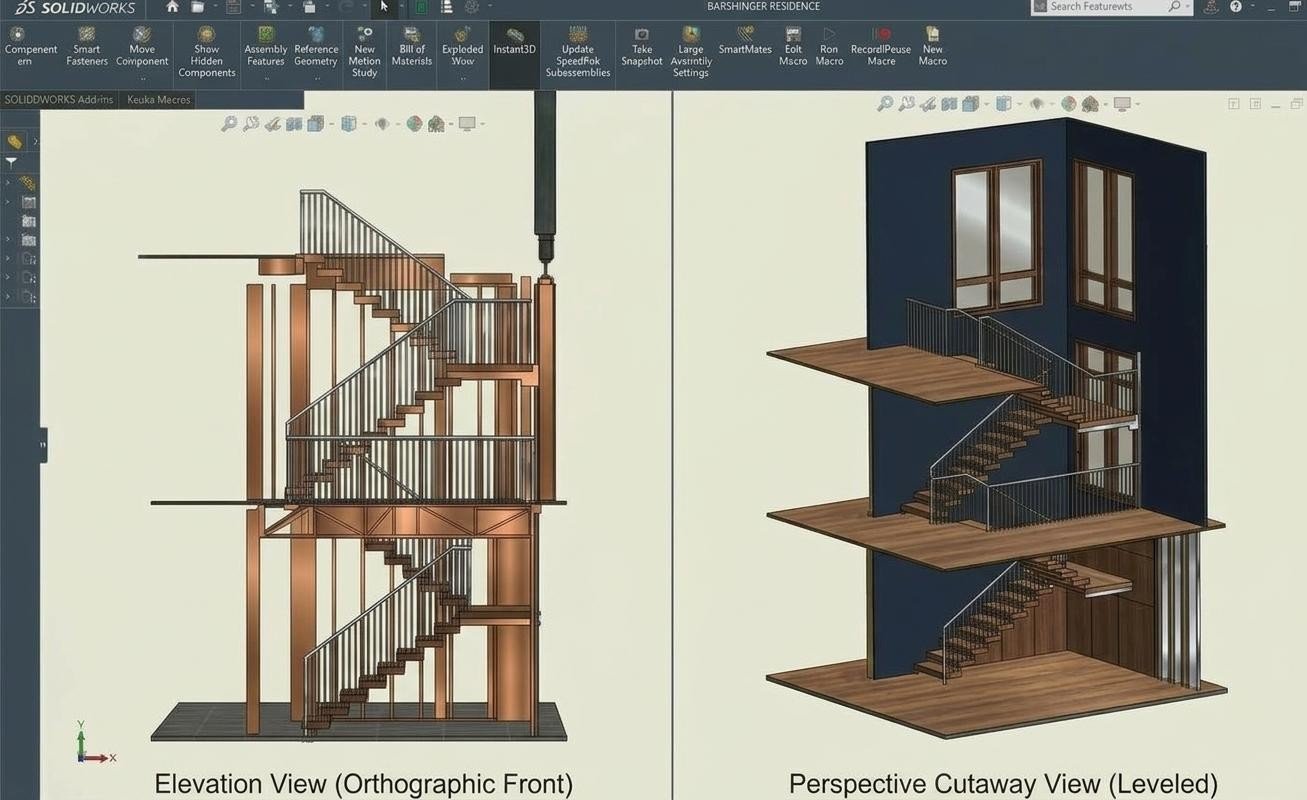

• Scan-to-CAD: point cloud and mesh data cleaned in 3D Xtract, then the existing structure rebuilt in SOLIDWORKS.

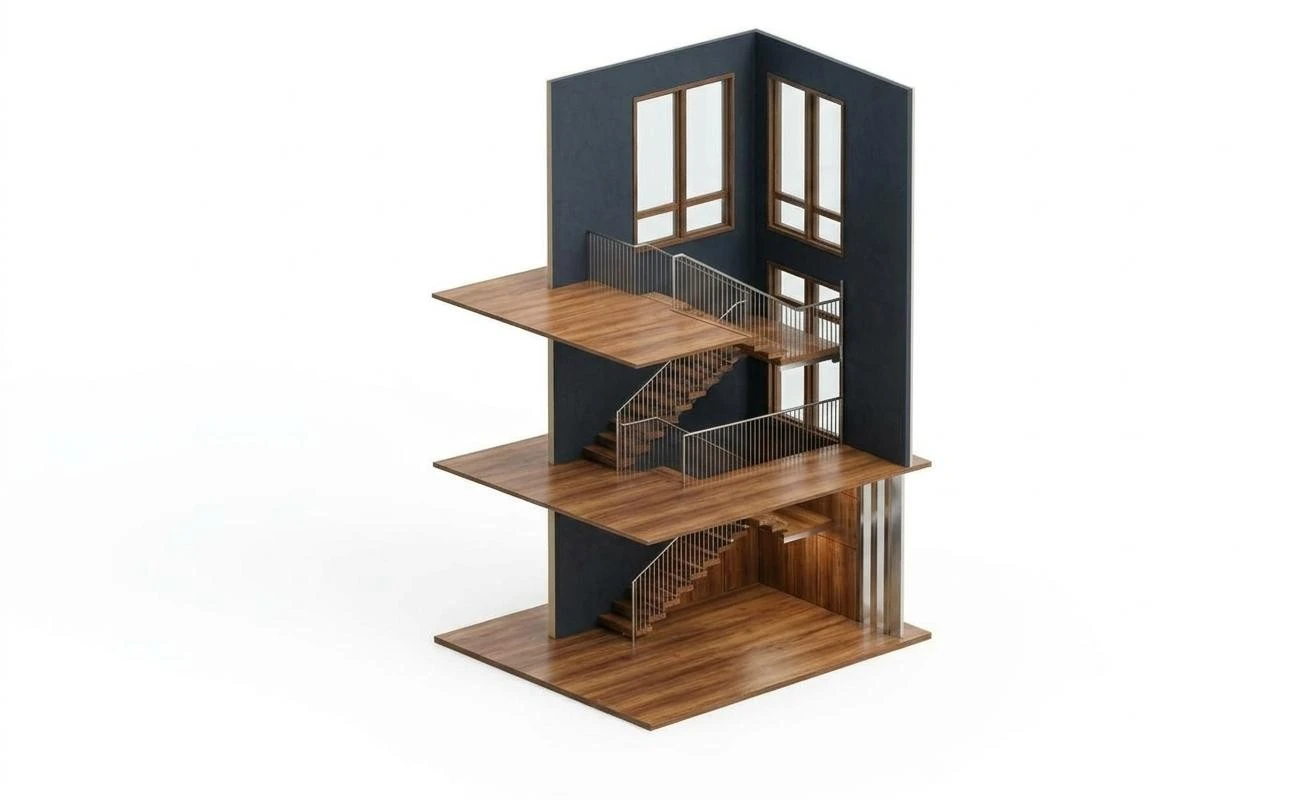

• Custom design of stairs, posts, handrails and supporting components, assembled in full 3D and coordinated with clients and stakeholders.
• Code-aware design: U.S. building codes such as IRC R311.7 (stairways), IRC R312 (guards) and IBC Chapter 10, plus manufacturing requirements.
• Fabrication package: fabrication and assembly drawings, sheet metal DXF files, post details and BOMs.

PROJECT SCOPE & DELIVERABLES

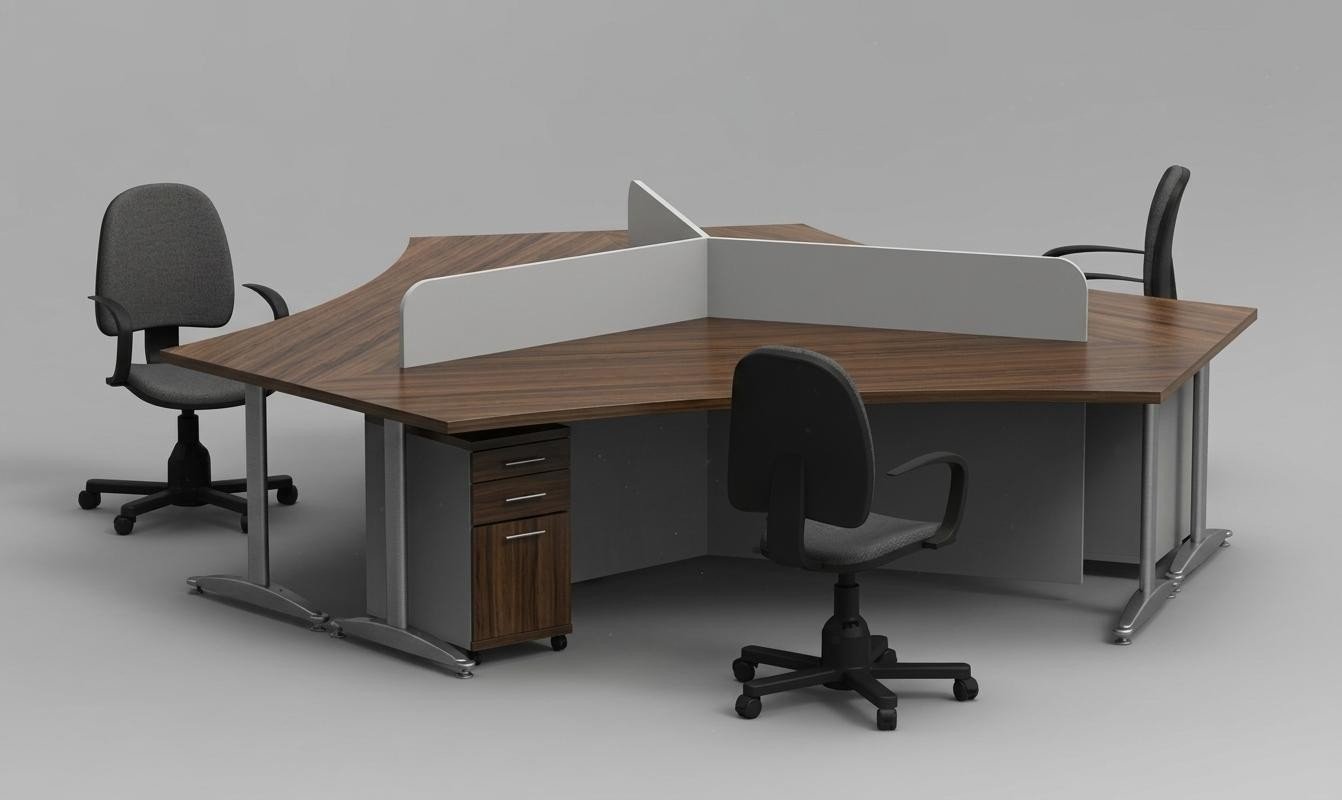

• Three-seat cluster workstation with central partition screens for privacy and focus.
• Wood-finish tops, steel-frame legs and mobile pedestal drawers, modelled in full 3D.
• Production-ready: cut lists, hardware schedules and BOM for manufacturing and assembly.

PROJECT SCOPE & DELIVERABLES

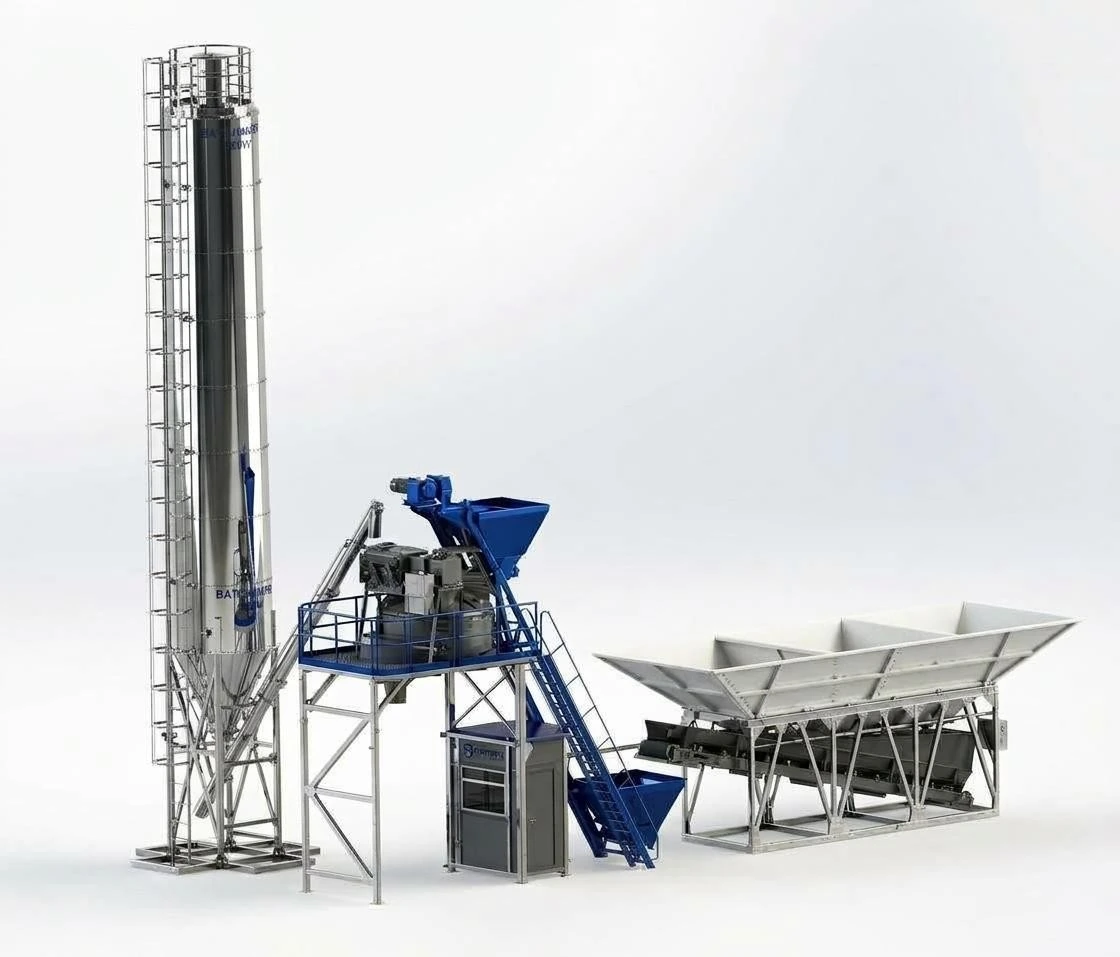

• Complete design of a stationary concrete batch plant: cement silo, mixer tower with operator cabin, aggregate bins and conveyor.
• Structural steelwork for the silo supports, mixer platform, access ladders and walkways.
• Fabrication drawings, assembly drawings and BOMs for every module.
• Modular layout to ease transport and on-site assembly.

PROJECT SCOPE & DELIVERABLES

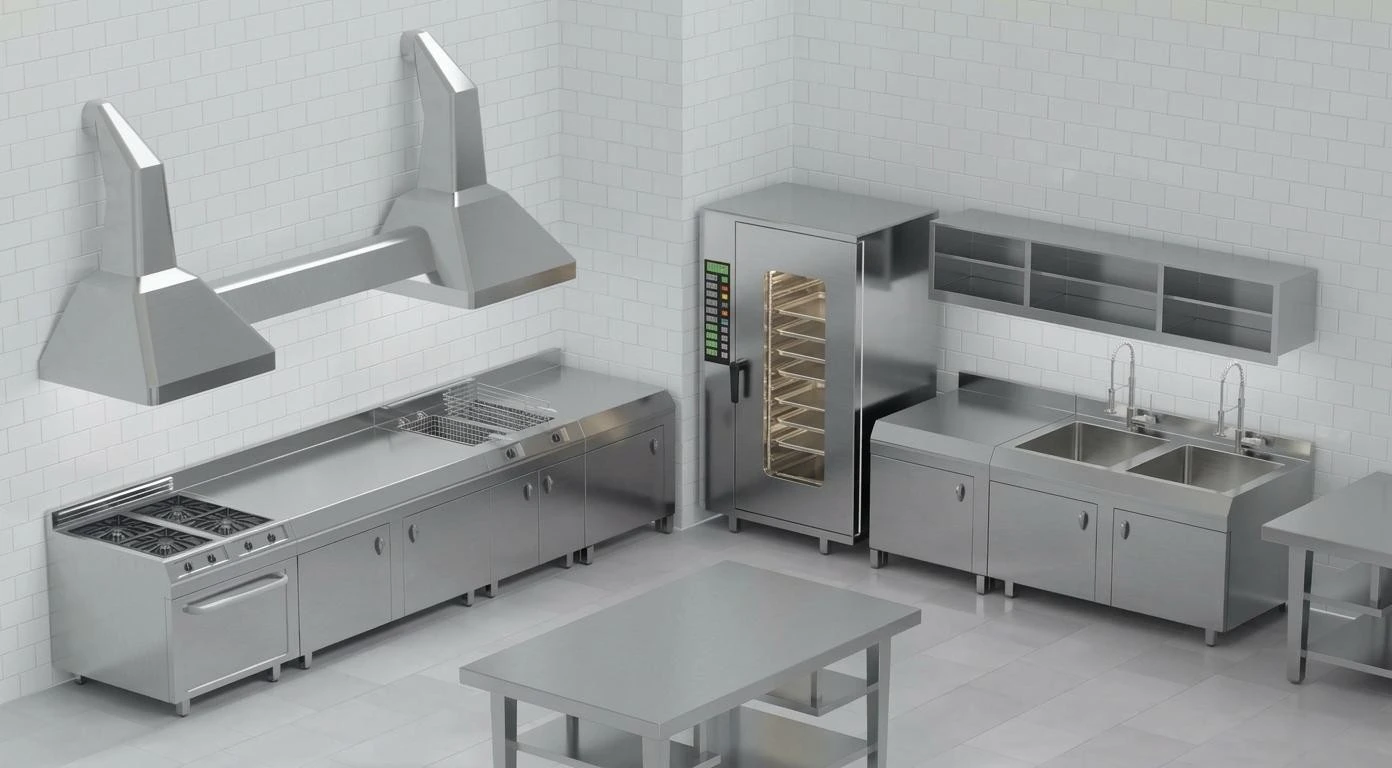

• Whole-kitchen sheet metal design in stainless steel, created for our client.
• Full equipment set: exhaust hoods, cooking line, prep tables, sink units and wall shelving.
• Fabrication-ready output: flat patterns, bend details and laser-cut DXF files.
• Coordinated layout with smooth, easy-to-clean surfaces.

PROJECT SCOPE & DELIVERABLES

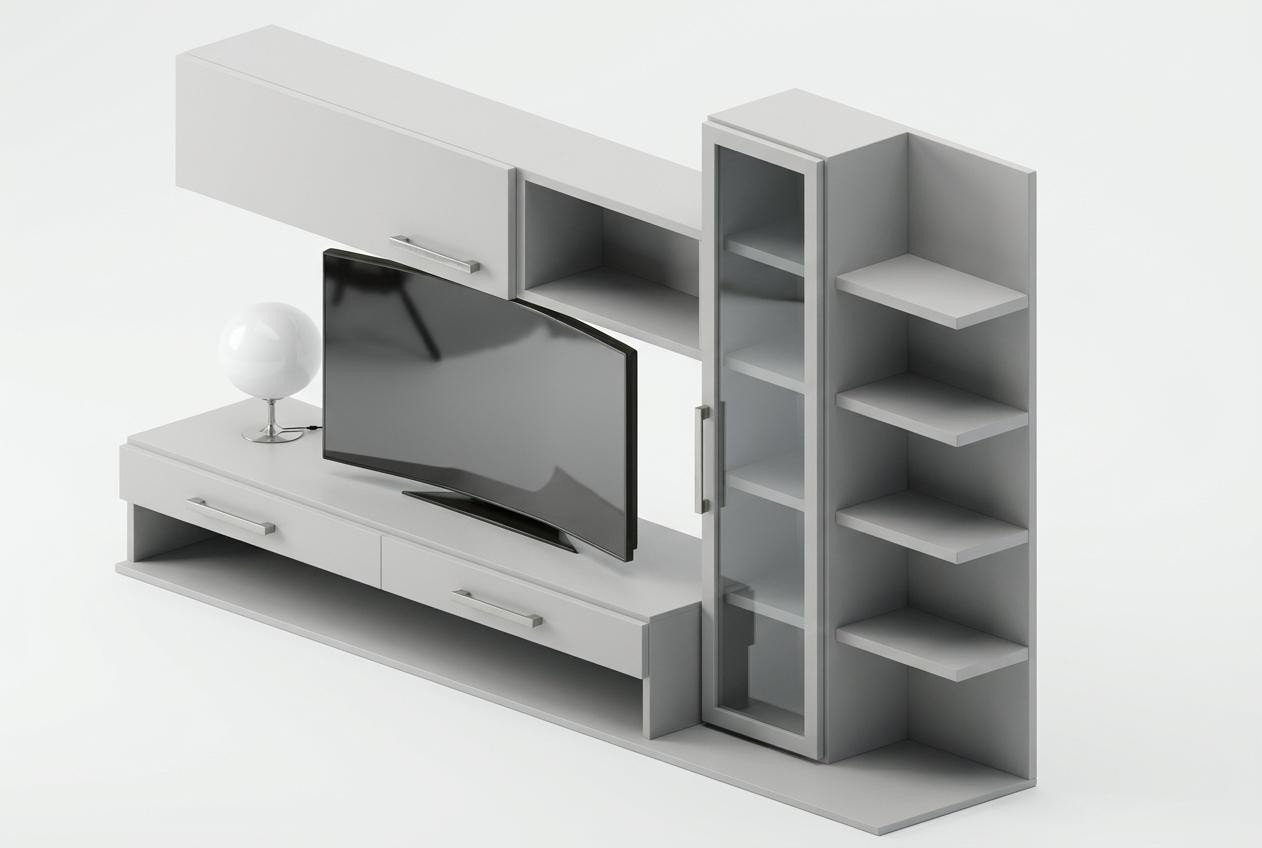

• Complete entertainment unit: TV console with drawers, wall cabinet, glass-door display tower and corner shelving.
• Joinery shop drawings with cut lists for every panel.
• Hardware schedules for handles, hinges and fittings, ready for procurement.
• Clean, modular design that is quick to build and fit on site.

PROJECT SCOPE & DELIVERABLES

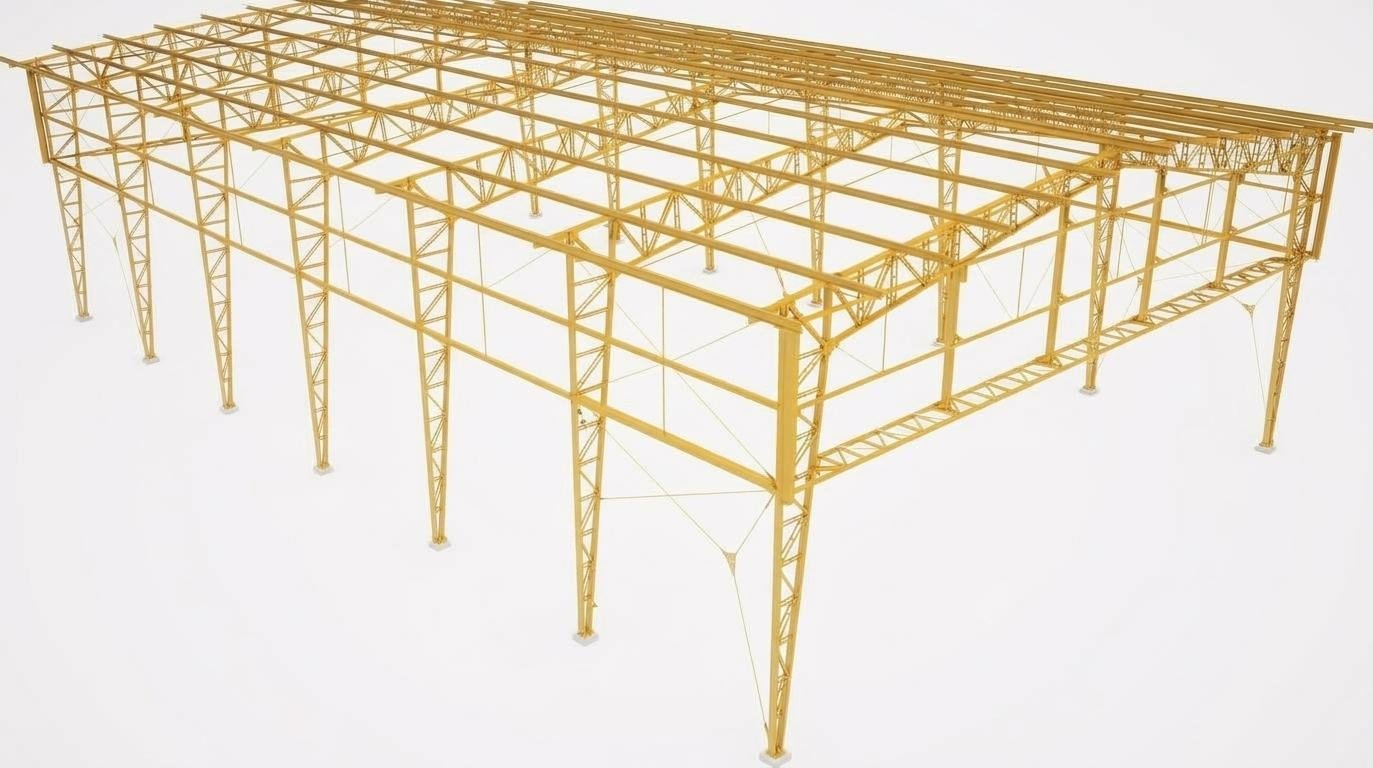

• Complete steel framework for an industrial building, with lattice columns, roof trusses, purlins and bracing.
• Detailed connection design and base plate details for every member.
• Shop and erection drawings with a full BOM, ready for fabrication and site assembly.
• Organised member marking to keep fabrication and erection straightforward.
